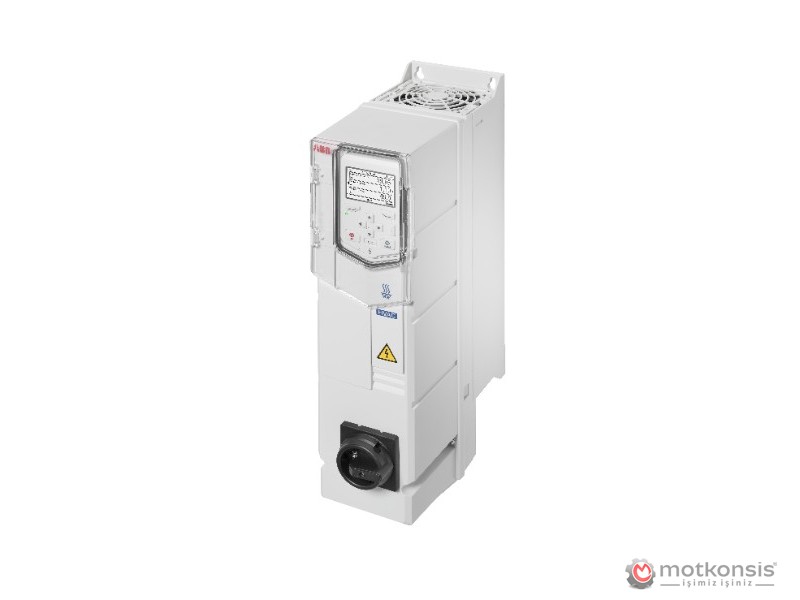

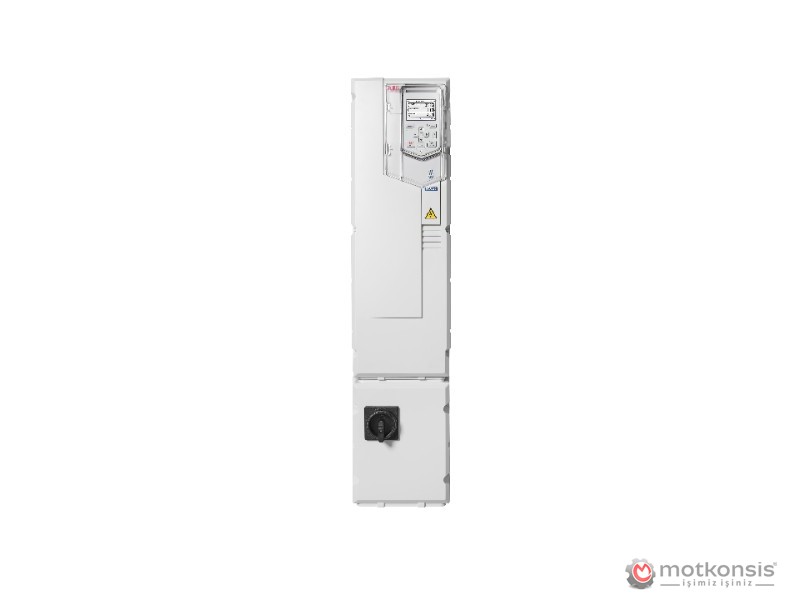

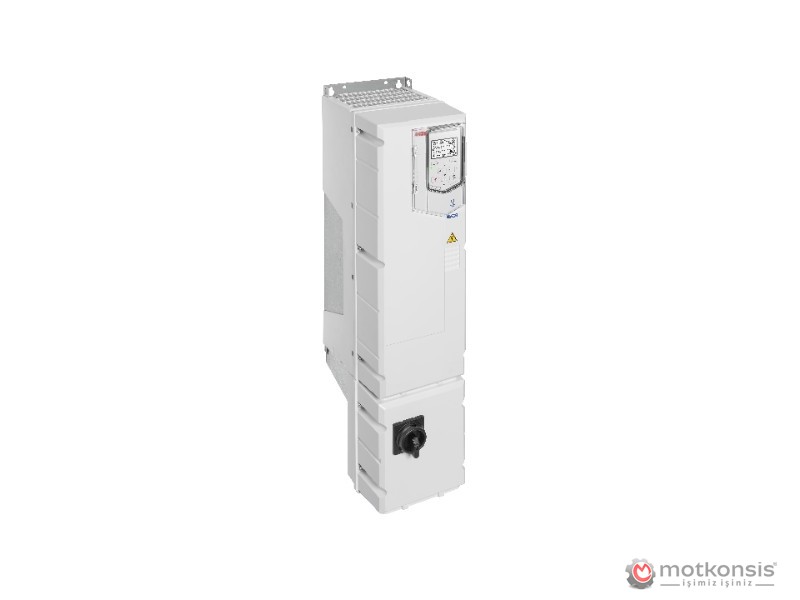

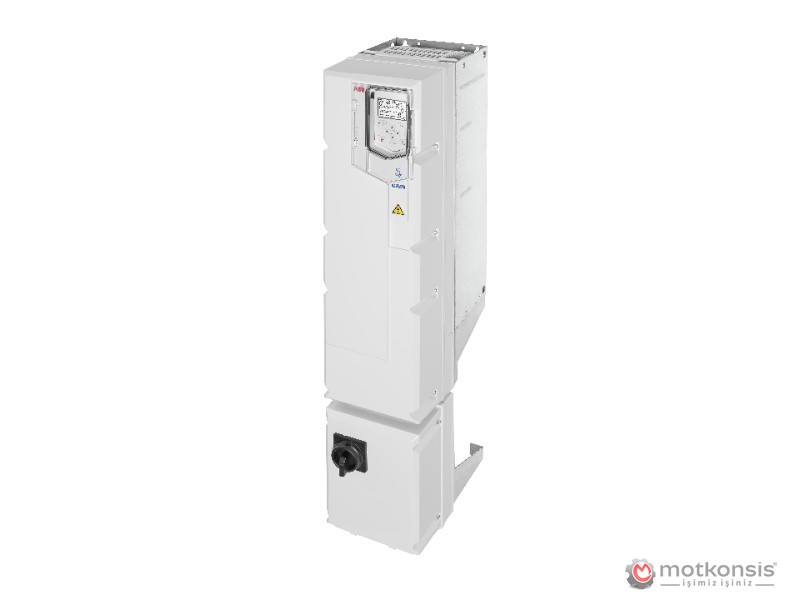

ABB Frequency Converter ACH580

ABB ACH580

Fans, Pumps, Compressors, All HVAC applications

3 phase power range; 380-480 VAC (ACH580-01 - Wall Mount Drive)	0,75-250[kW]
3 phase power range; 380-480 VAC (ACH580-04 - Modular Drive)	250-500[kW]
3 phase power range; 380-480 VAC (ACH580-07 - Panel Mount Drive)	75-500[kW]
3 phase power range; 380-480 VAC(ACH580-31 - Panel Mount Drive)	4-45[kW]

The new ACH580 drives come with a range of advanced features, such as a new primary settings menu that makes commissioning the drives much easier and faster. Bluetooth connectivity offers improved accessibility for drives in remote areas and increases safety by allowing users to stay out of arc flash zones.With ABB frequency inverters, you can increase and decrease the operating speed of devices such as fans and pumps that run at constant speed, allowing them to run in the most efficient range for your business. In this way, you will also prevent unnecessary energy consumption. ABB ACH580 series inverters provide ease of operation and installation with ready-made coding for the HVAC sector.

ACH580 drives are ideal for HVAC fans, pumps, compressors, air handlers and chillers used in hospitals, data centers, shopping malls, tunnel ventilation, factories, office buildings and more.

Main Benefits

All equipment in one package
Wide power range
Multiple enclosure types available
Master switch option
Easy to select, install, deploy and use
HVAC specific features are integrated as standard
Intuitive control panel with optional Bluetooth Several languages and communication built in
Reliable connection to large automation and control systems
Control of a wide range of motors for any HVAC application
Based on ABB's fully compatible drive platform.
Optimized energy efficiency
Wide availability and support
Standard BACnet, Modbus, N2 and FLN (RS485)
Optional LonWorks, PROFIBUS, DeviceNet (socket)
EMC (according to 618003) Standard C2 class (1st environment)
Input/Output 2AI, 2AO, 6DI, 3DO
Protection Class IP21 (Optional IP54)
